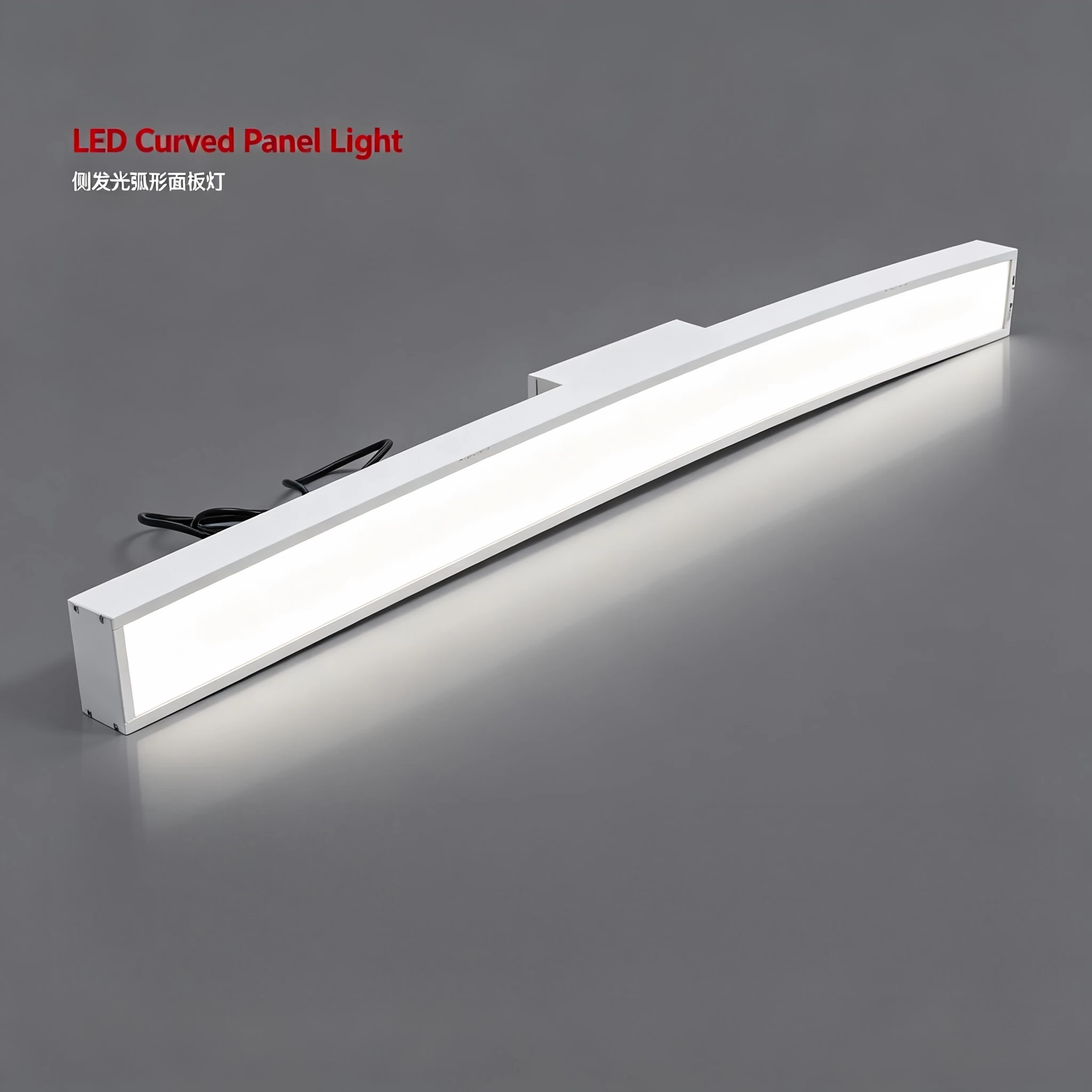

Edge Lit LED Curved Linear Panel Light 11W-25W Suspended Commercial Ceiling Lamp
- Edge-lit curved LED linear panel light, power range 11W-25W, size 113595/120095mm, max 130LM/W high efficiency, CRI≥80, seamless splicing. Suspended & recessed mounting, aerospace aluminum housing, 50000hrs lifespan. Perfect for subway stations, high-speed rail halls, airport terminals and all public spaces.
Generate QR code
-
When You'll Get It:Sep 07 - Sep 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Product Overview
Our edge-lit curved LED panel light adopts aerospace stretch aluminum frame with high reflectivity light guide plate, delivering uniform soft light without dark spots and glare. Split driver design enables quick installation & maintenance. Unique curved shape fits curved ceiling projects like subway and rail transit stations, AC180-265V wide voltage adapts global commercial power grid.
| Parameter Item | Specification |
|---|---|
| Driver Brands | Meanwell / Inventronics / Osram |
| LED Chip Brands | Osram / Nichia / Cree |
| Operating Voltage | AC 180~265V, 50Hz |
| CCT Options | 3000K / 4000K / 5000K / 6000K |
| Power Factor | ≥0.95 |
| CRI | Ra ≥80 |
| Luminous Efficacy | 90–130 LM/W |
| Beam Angle | 120° |
| THD | ≤10% |
| Ripple Current | ≤5% |
| Color Tolerance | SDCM ≤5 |
| Surge Protection | 1KV, 2KV, 4KV, 6KV |
| IP Rating | IP43 |
| Protection Mode | Short-circuit / Over-current / Over-voltage / Over-temperature |
| Installation | Suspended Rod/Cable / Recessed Mount |
| Structural Feature | Seamless Splicing, Custom Length & Width |
| Housing Material | Aerospace Aluminum Frame + Diffuser Plate / Tempered Glass |
| Average Lifespan | 50,000 Hours |
| Certifications | CE, CCC, PSE, RoHS |
Core Product Advantages
1.Aerospace stretch aluminum housing, high heat dissipation, anti-oxidation & anti-corrosion, no fading or peeling
2.99.6% high reflectivity light plate, professional light distribution, max 130LM/W high luminous efficiency
3.Dense staggered light source layout, uniform soft light output, zero dark zone & no glare
4.Anti-shake structural design with fixed shrapnel & shockproof rubber strips, strong anti-vibration performance
5.Split driver & lamp body, simple installation, clean outlook and easy maintenance
Factory wholesale edge lit curved linear panel light, anti-glare curved ceiling lamp for subway rail transit engineering, custom size curved LED panel light for airport public lighting projects.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
