S Series UFO LED High Bay Light 100W-200W Industrial Warehouse Lamp
- S series UFO LED high bay light, 100/150/200W, up to 160LM/W, PF＞0.95, Ra70/80. 3 beam angles & 4 CCT options, 0-10V/DALI dimmable, microwave sensor optional. Wide global voltage, aluminum heat sink, for warehouse, factory, gym.
Generate QR code
-
When You'll Get It:Dec 07 - Dec 11
-
Shipping & Support: In‑stock items ship within 24 hours; custom orders ship per contract. For bulk purchases, please contact our customer service.
Product description
Shipping & Return
Product Overview
Suspended UFO industrial high bay light with integrated aluminum heat sink, multiple power & customized functions for high-ceiling commercial & industrial venues.

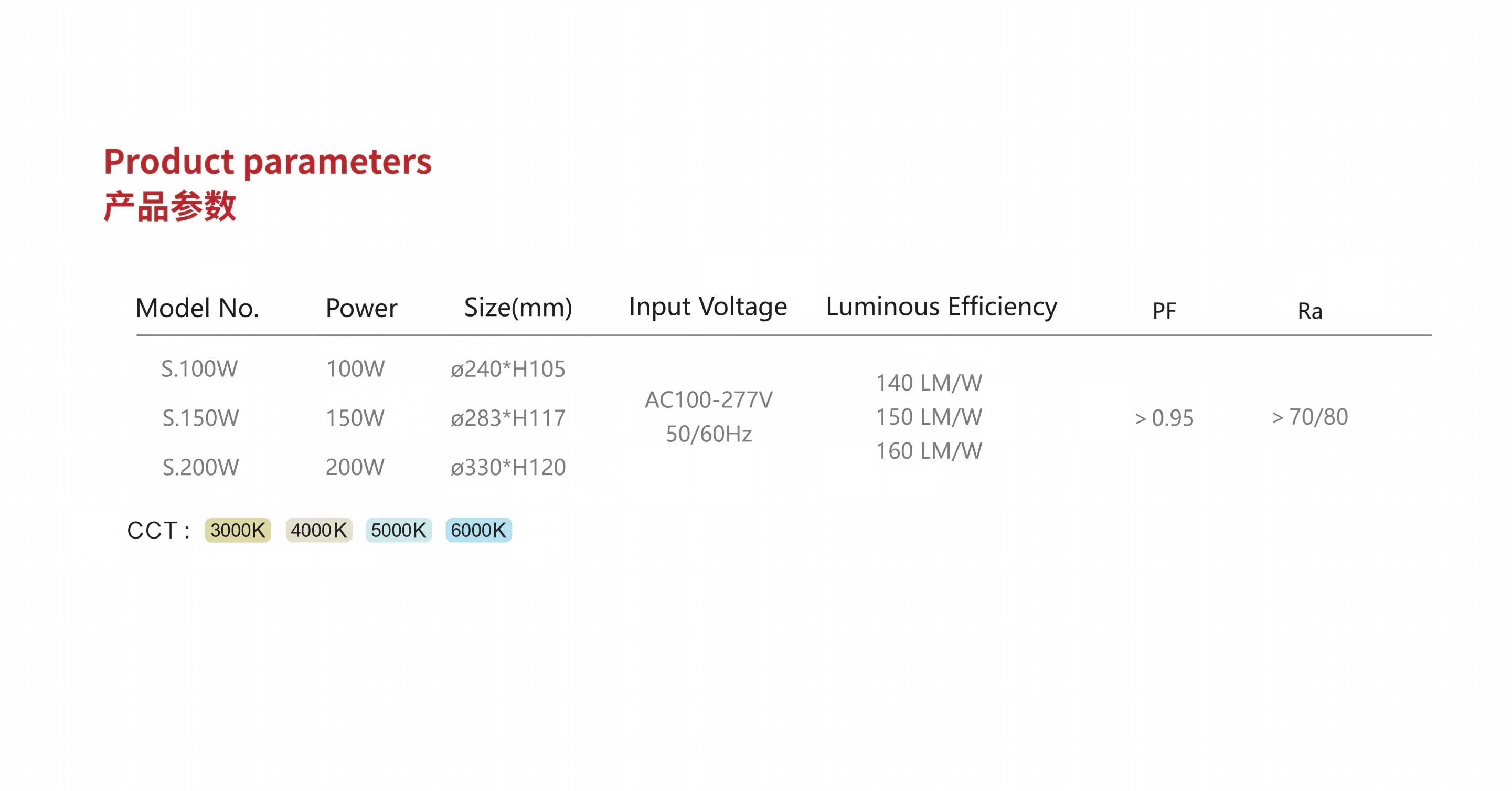

Full Technical Parameter Table
| Parameter Item | Specification |
|---|---|
| Model Number | S.100W / S.150W / S.200W |
| Rated Power | 100W / 150W / 200W |

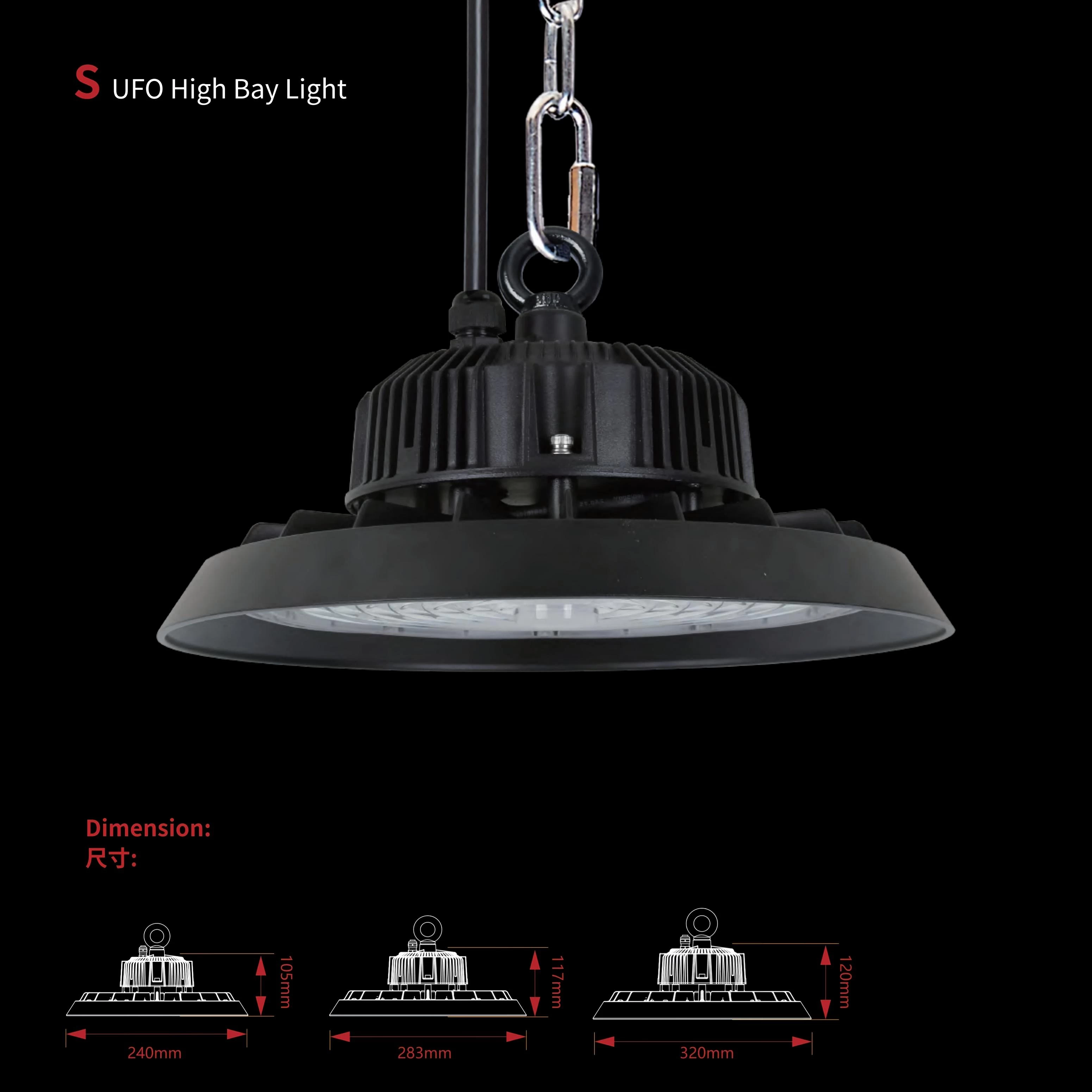

| Overall Dimension | S.100W: Ø240H105mmS.150W: Ø283H117mmS.200W: Ø320*H120mm |
| Input Voltage | AC100-277V, 50/60Hz |
| Luminous Efficiency | 140LM/W ~ 160LM/W |
| Power Factor | PF ＞ 0.95 |
| Color Rendering Index | Ra＞70 / Ra＞80 Optional |
| Color Temperature CCT | 3000K / 4000K / 5000K / 6000K |
| Optional Beam Angle | 60° Narrow / 90° Medium / 120° Wide |
| Dimming Mode | 0-10V Dimming, DALI Dimming (Customizable) |
| Optional Intelligent Function | Microwave Motion Sensor, Cold Storage Sensor |
| Optional Accessories | Aluminum Diffuser Cover, Remote Controller |
| Main Housing Material | Die-cast Aluminum Alloy |
| Installation Method | Chain Suspension Mounting |
| Rated Lifespan | 50,000 Hours |

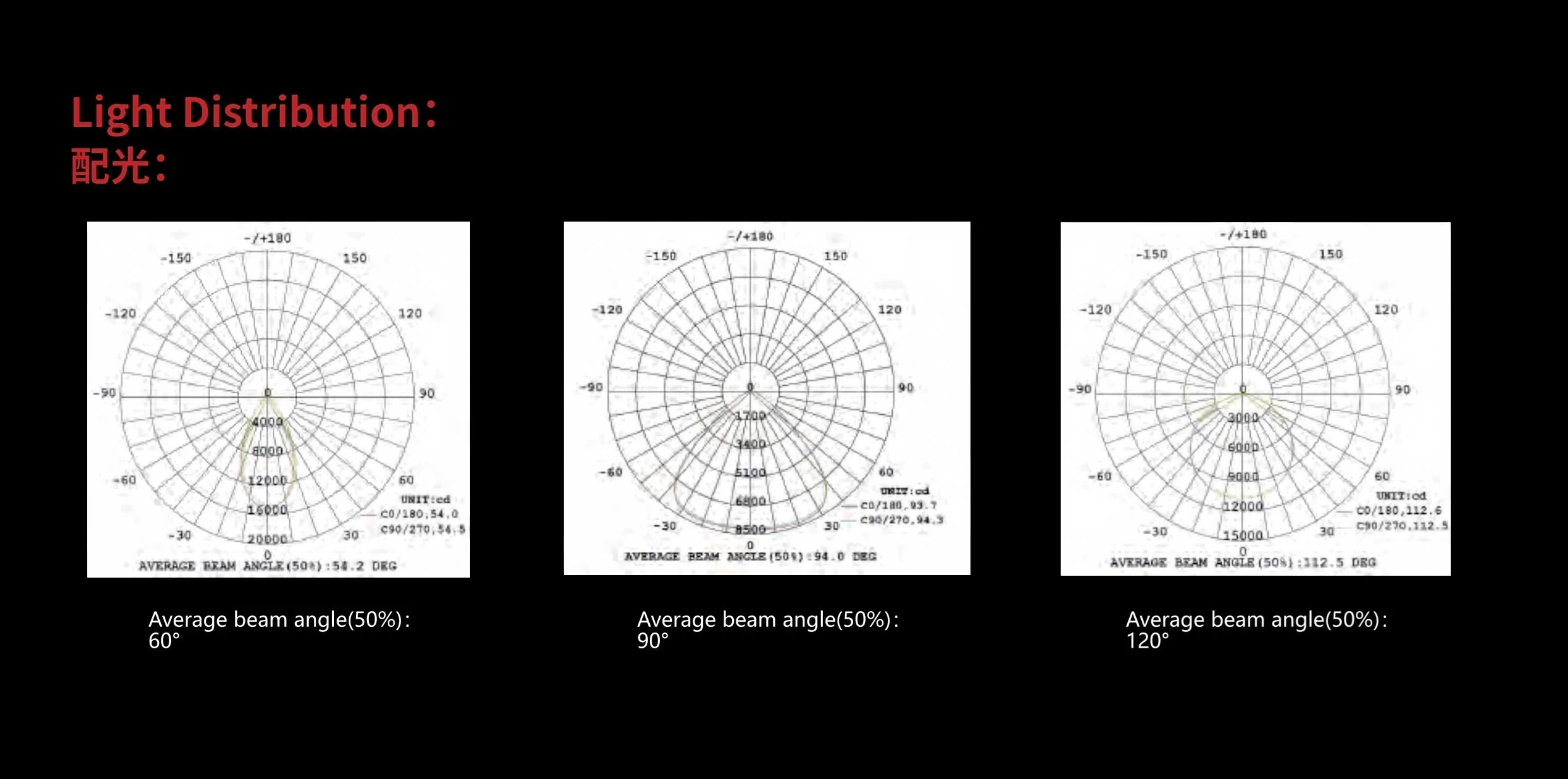

Light Distribution Explanation
60° narrow beam for high rack warehouse; 90° medium beam for standard factory workshop; 120° wide beam for large open space. Even light output without dark spots on ground.
Our Advantages
1.High luminous efficiency up to 200LM/W, 70% energy saving vs traditional lamps
2.AC100-277V global wide voltage, flicker-free stable light
3.Die-cast aluminum heat sink, slow light decay, 50000h long service life
4.60°/90°/120° three beam angles optional, uniform lighting without dark zones
5.Multiple CCT options (3000K-6000K), PF＞0.9 high power facto
6.Support 0-10V / DALI dimming, intelligent energy control
Direct factory wholesale S series UFO LED high bay light, customized dimming and sensor solutions for global industrial high ceiling lighting projects.
