Product Overview
Compact split modular LED street light made of die-cast aluminum alloy, power range 50W to 300W. Equipped with six professional road optical patterns and abundant smart control accessories, with global complete certifications for municipal road engineering projects.

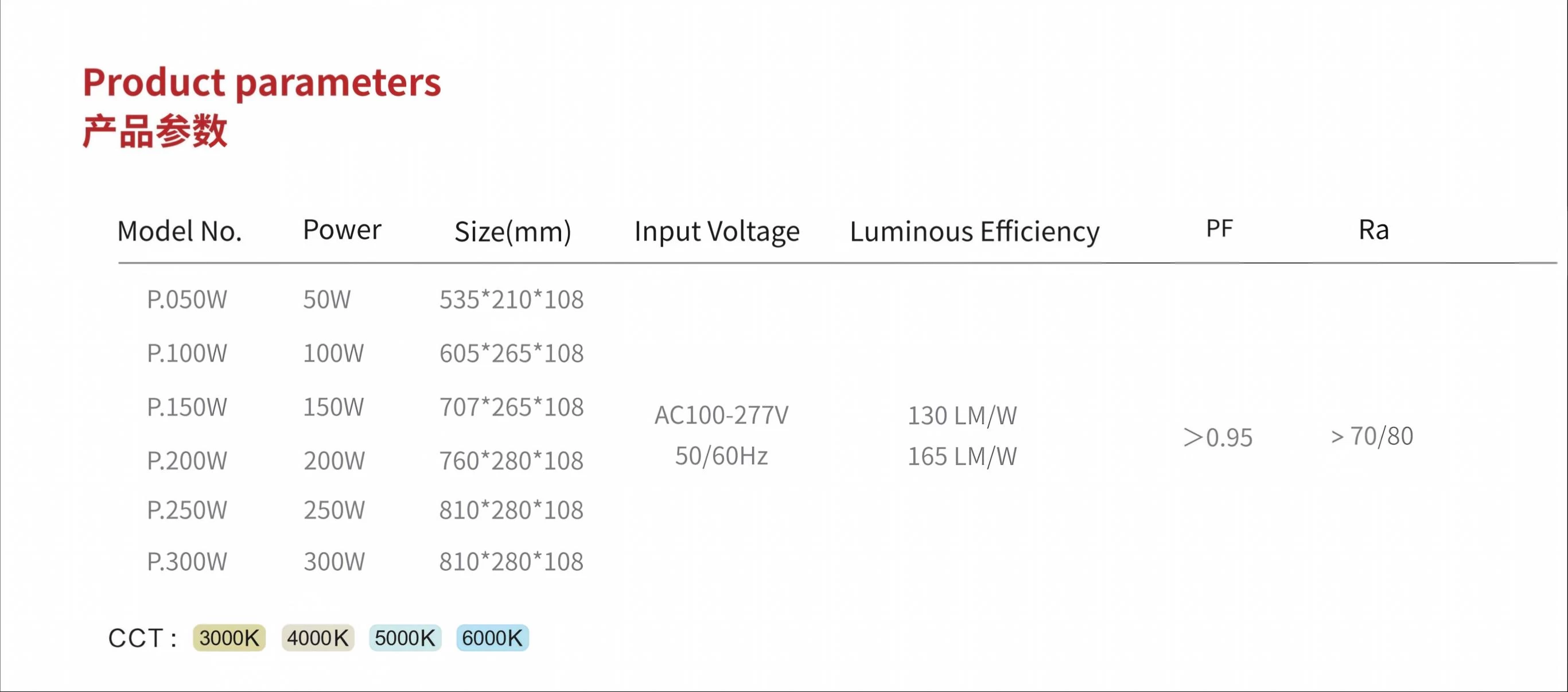

| Parameter Item | Specification |
|---|---|
| Model Number | P.050W / P.100W / P.150W / P.200W / P.250W / P.300W |
| Rated Power | 50W / 100W / 150W / 200W / 250W / 300W |
| Overall Dimension | P.050W: 535210108mmP.100W: 605265108mmP.150W: 707265108mmP.200W: 760280108mmP.250W: 810280108mmP.300W: 810280108mm |
| Mounting Pipe Diameter | Φ60mm |
| Input Voltage | AC100-277V, 50/60Hz |
| Luminous Efficiency | 130~165LM/W |
| Power Factor | PF ＞ 0.95 |
| Color Rendering Index | Ra＞70 / Ra＞80 Optional |
| Color Temperature CCT | 3000K / 4000K / 5000K / 6000K |
| Optional Light Distribution | Type I / Type II / Type III / Type I/II / Residential Road / Wide Road Distribution |
| Dimming & Control | ON/OFF, 0-10V DIM, DALI DIM, PLC Single/Dual/Centralized Control, Timer Function |
| Optional Accessories | 10KV/20KV SPD Surge Protector, Zhaga Socket/Cap/Photocell, NEMA 3/5/7 Wire Socket/Cap/Photocell, Circuit Breaker |
| Housing Material | Die-cast Aluminum Alloy |
| Maintenance Feature | Tool-free repair, power failure safety protection |
| Certifications | Global full certification support |
| Rated Lifespan | 50,000 Hours |
Light Distribution Explanation
Six dedicated optical designs match different road scenes, including residential lanes, urban main highways and parking lots, delivering uniform, glare-free road illumination.
Core Product Advantages
1.Die-cast aluminum split modular design, tool-free disassembly for easy on-site maintenance
2.High luminous efficiency up to 165LM/W, PF＞0.95, effectively cut municipal power consumption
3.Complete intelligent control options, compatible with Zhaga, NEMA, DALI and PLC systems
4.Six professional road light distributions, match highways, communities, parking lots and country roads
5.AC100-277V wide universal voltage, global full certifications, 50,000-hour long service life
Factory wholesale P series compact modular smart LED street light, multiple optical types and smart accessories available for municipal road lighting projects.
