E Series Mini LED Street Light 40W-200W Municipal Road Lighting Lamp

  • E series mini compact LED street light 40W-200W, luminous efficiency 110~130LM/W, PF＞0.95, Ra＞80. 6 road light distributions & 4 CCT, support 0-10V/DALI/PLC control. Optional Zhaga/NEMA socket, photocell, SPD surge protector. Tool-free maintenance for residential roads, sidewalks, parking lots.
Share

  • When You'll Get It:Sep 07 - Sep 11

  • Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return

Product Overview

Mini compact die-cast aluminum LED street light, power range 40W to 200W. Small lightweight body, six professional road optical patterns and complete intelligent control accessories, global full certifications for municipal & residential road engineering.

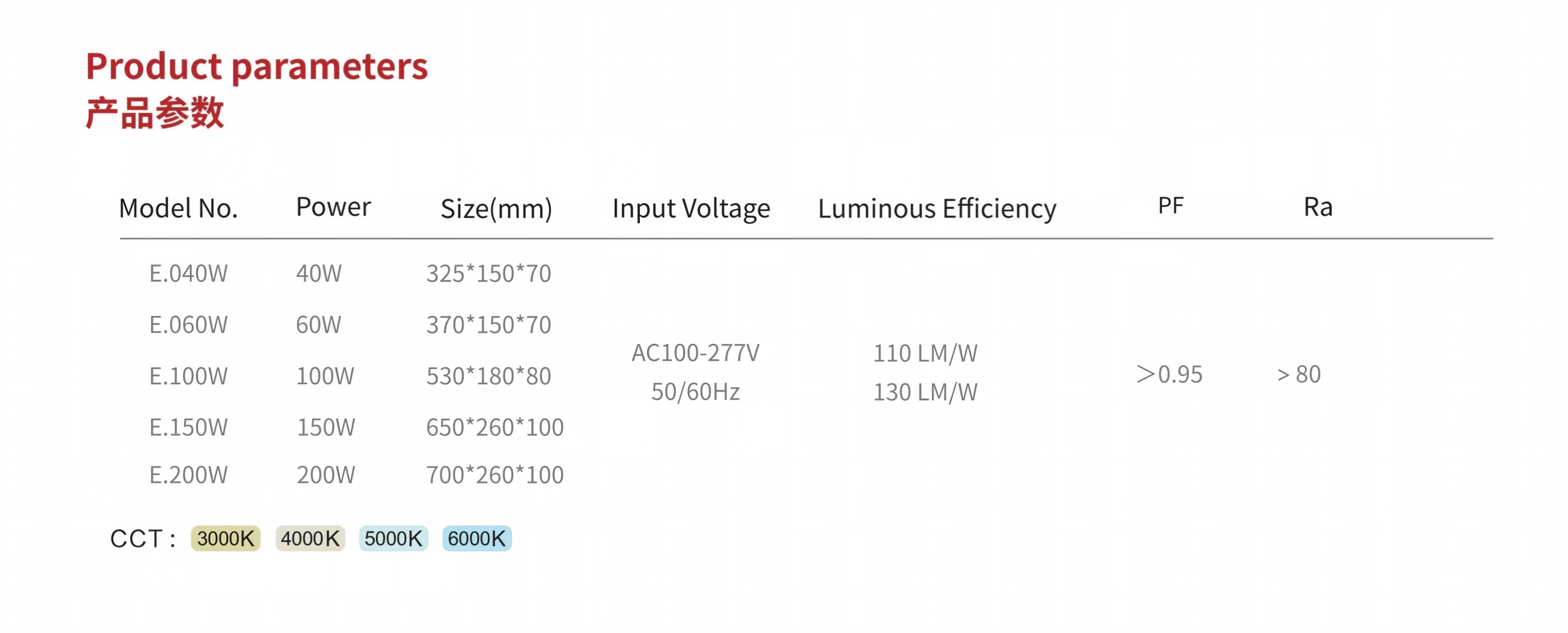

Parameter ItemSpecification
Model NumberE.040W / E.060W / E.100W / E.150W / E.200W
Rated Power40W / 60W / 100W / 150W / 200W

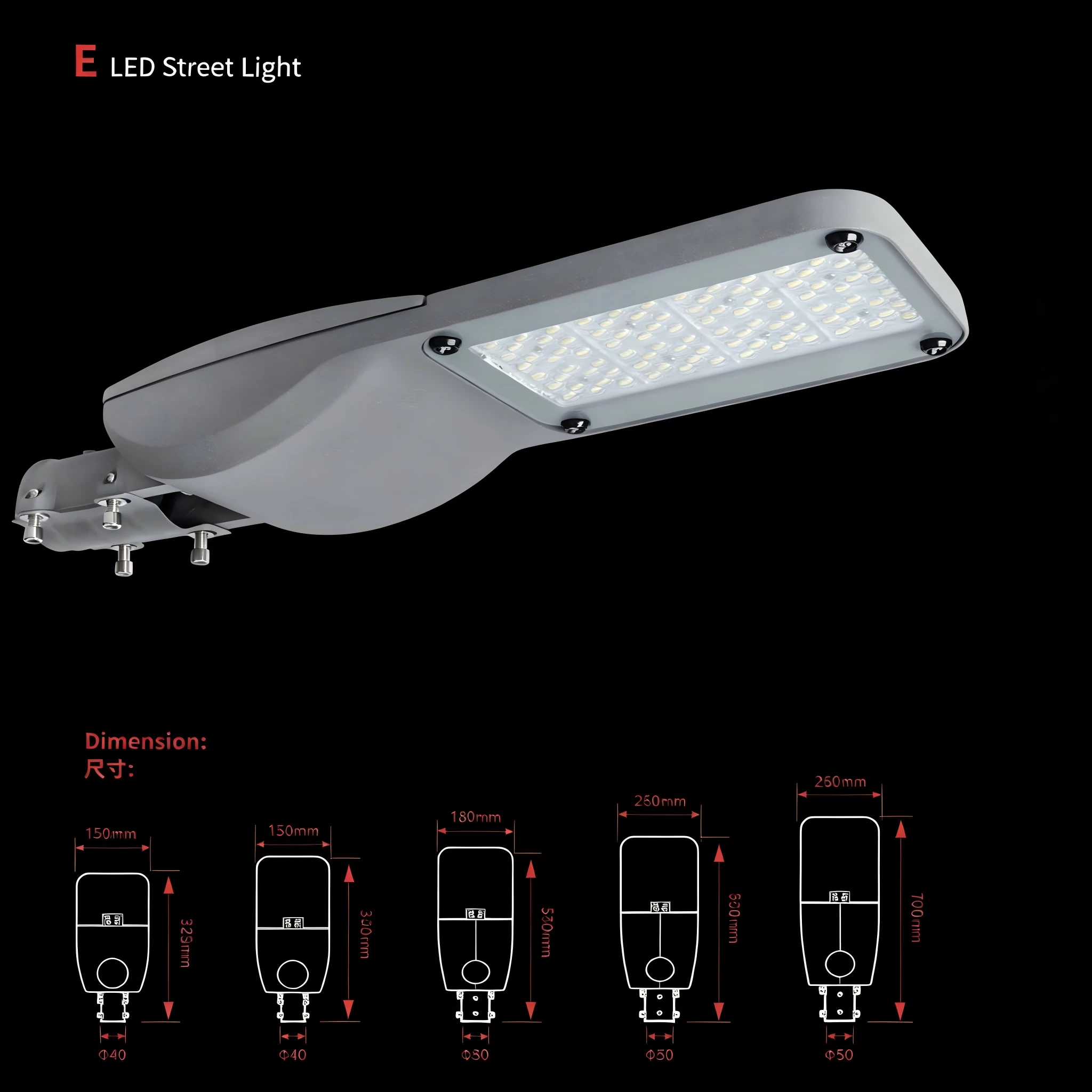

Overall DimensionE.040W:32515070mm
E.060W:37015070mm
E.100W:53018080mm
E.150W:650260100mm
E.200W:700260100mm
Mounting Pipe DiameterΦ40mm / Φ50mm
Input VoltageAC100-277V, 50/60Hz
Luminous Efficiency110~130LM/W
Power FactorPF ＞ 0.95
Color Rendering IndexRa＞80
Color Temperature CCT3000K / 4000K / 5000K / 6000K
Optional Light DistributionType I / Type II / Type III / Type I/II / Residential Road / Wide Road Distribution
Dimming & ControlON/OFF, 0-10V DIM, DALI DIM, PLC Single/Dual/Centralized Control, Timer Function
Optional Accessories10KV/20KV SPD Surge Protector, Zhaga Socket/Cap/Photocell, NEMA 3/5/7 Wire Socket/Cap/Photocell, Circuit Breaker
Housing MaterialDie-cast Aluminum Alloy
Maintenance FeatureTool-free repair, power failure safety protection
CertificationsGlobal full certification support
Rated Lifespan50,000 Hours





Light Distribution Explanation

Six dedicated optical designs fit narrow residential lanes, sidewalks and small parking lots, deliver uniform soft light without glare.



Core Product Advantages
1.Die-cast aluminum split modular design, tool-free disassembly for easy on-site maintenance
2.High luminous efficiency up to 165LM/W, PF＞0.95, effectively cut municipal power consumption
3.Complete intelligent control options, compatible with Zhaga, NEMA, DALI and PLC systems
4.Six professional road light distributions, match highways, communities, parking lots and country roads
5.AC100-277V wide universal voltage, global full certifications, 50,000-hour long service life

Factory wholesale E series mini compact LED street light, multiple optical types & smart control accessories for small municipal and residential road projects.



Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
