8011 Series Aluminum Reflector LED High Bay Light 70W-200W Industrial Lamp

  • 8011 LED high bay light with integrated aluminum reflector, power 70W-200W, max 130LM/W, CRI＞80, PF＞0.95. AC90-265V wide voltage, 3 beam angles & 4 CCT, IP65 waterproof, 50000h lifespan. Split driver design, easy installation, fit factory, warehouse, railway station, supermarket.
Share

  • When You'll Get It:Sep 07 - Sep 11

  • Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return

Product Overview

Industrial LED high bay light equipped with deep aluminum reflector, die-cast aluminum cooling body. Split driver & light source design for easy maintenance. Ultra-wide AC90-265V input, IP65 waterproof, multiple beam angles for large industrial & commercial venues.

Parameter ItemSpecification
Model Code8011000070 / 8011000080 / 8011000085 / 8011000090 / 8011000100 / 8011000110 / 8011000120 / 8011000150 / 8011000180 / 8011000200
Rated Power70W / 80W / 85W / 90W / 100W / 110W / 120W / 150W / 180W / 200W
Luminous Flux7700Lm ~ 21000Lm
CRIRa＞80
Input VoltageAC90-265V, 50Hz
Product Dimension70-120W: Ø420H350mm
150-200W: Ø450H380mm
Luminous Efficiency100~130LM/W
Power FactorPF ＞ 0.95
Efficiency≥90%
Total Harmonic Distortion≤10%
Ripple Current≤5%
CCT3000K / 4000K / 5000K / 6000K
Optional Beam Angle30° Narrow / 80° Medium / 120° Wide
Color ToleranceSDCM ≤5
Surge Protection4KV / 6KV
Waterproof GradeIP65
Housing MaterialDie-cast Aluminum + Aluminum Reflector + Tempered Glass
Installation WayChain Suspension / Pole Mounting
Rated Lifespan50,000 Hours
CertificationsCE, RoHS
Custom SupportPower, CCT, Beam Angle Adjustable

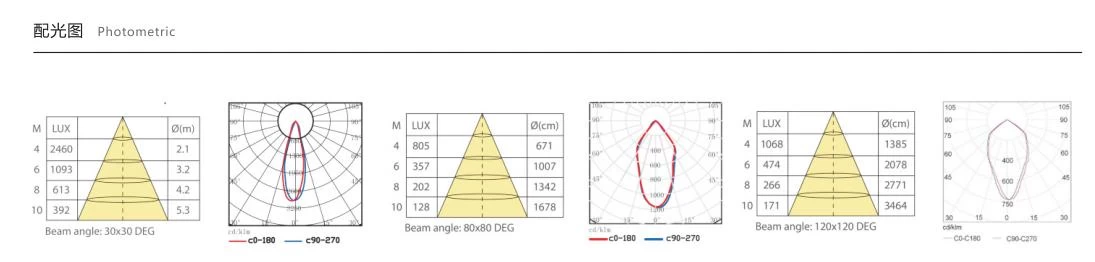

Light Distribution Explanation

30° narrow beam for high rack warehouse; 80° medium beam for factory workshop; 120° wide beam for open station & supermarket, concentrated light to reduce light waste.


Core Product Advantages
1.Deep integrated aluminum reflector, strong light concentration, higher space brightnes
2.Die-cast aluminum heat dissipation structure, fast heat transfer, low lamp surface temperature
3.High efficiency up to 130LM/W, save 65% electricity vs traditional metal halide lamps
4.Stable constant current driver, THD＜10%, 6KV surge protection, long service life
5.IP65 waterproof dustproof, adapt humid & dusty factory environment

Factory wholesale 8011 aluminum reflector LED high bay light, IP65 waterproof, high lumen industrial ceiling lamp for station and warehouse lighting projects.

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
