DS Series Yellow LED Explosion Proof UFO High Bay Light 50W-300W Hazardous Area Lamp

DS series explosion proof UFO LED high bay light 50W-300W, max 200LM/W, PF＞0.95, Ra70/Ra80. 60°/90°/120° beam angles & 4 CCT, support 0-10V/DALI dimming. Optional microwave sensor, remote control, AL/PC diffuser. Explosion-proof yellow housing, wide voltage for chemical plant, oil depot, coal mine, flammable workshop.

When You'll Get It:Sep 07 - Sep 11
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.

Product description

Shipping & Return

Product Overview

Anti-explosion UFO industrial high bay light with flameproof yellow alloy housing, hollow die-cast heat sink. Complete intelligent accessories including microwave sensor and remote control, multiple customizable dimming functions, specially designed for flammable & explosive hazardous working sites.

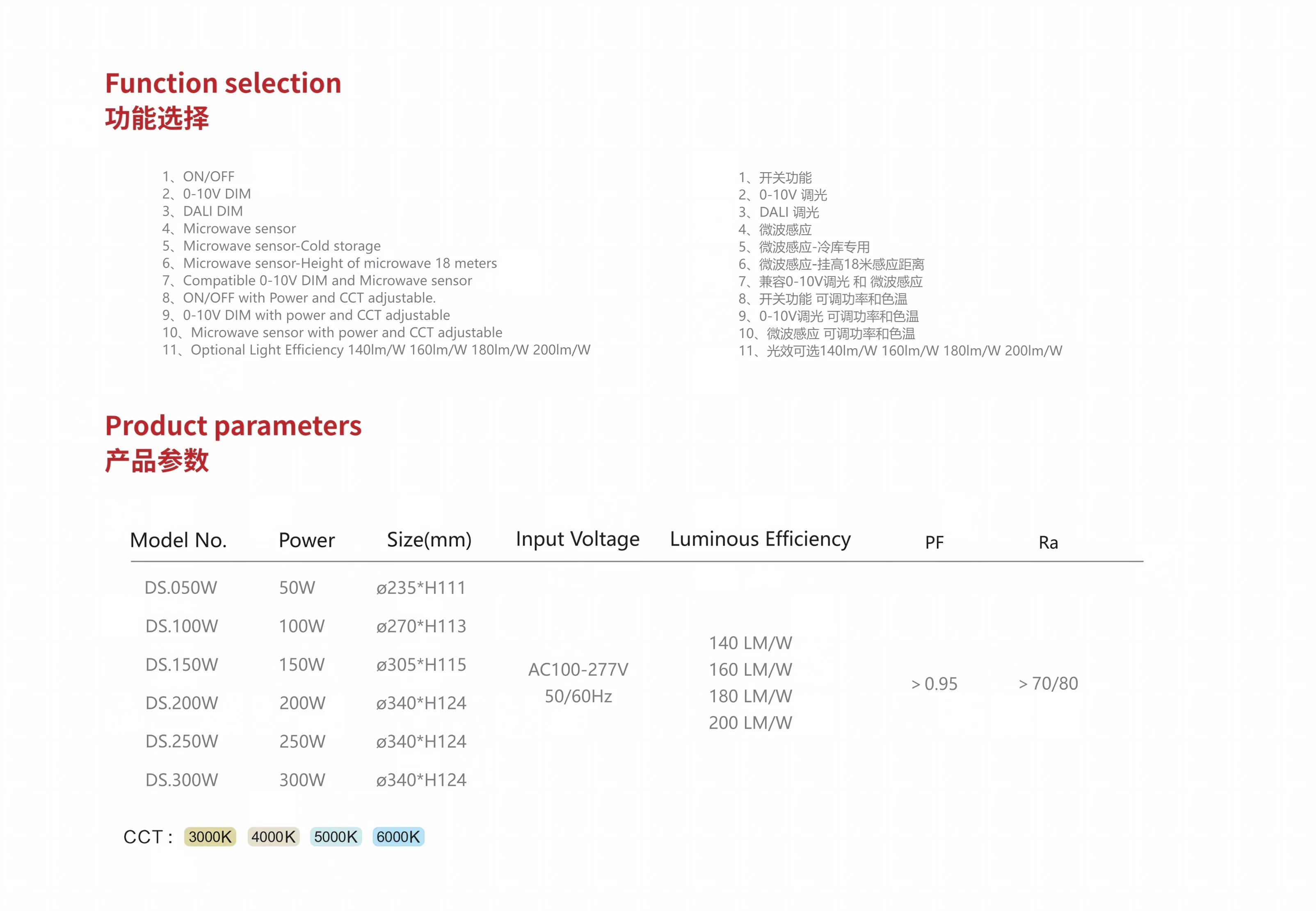

Parameter Item	Specification
Model Number	DS.050W / DS.100W / DS.150W / DS.200W / DS.250W / DS.300W
Rated Power	50W / 100W / 150W / 200W / 250W / 300W

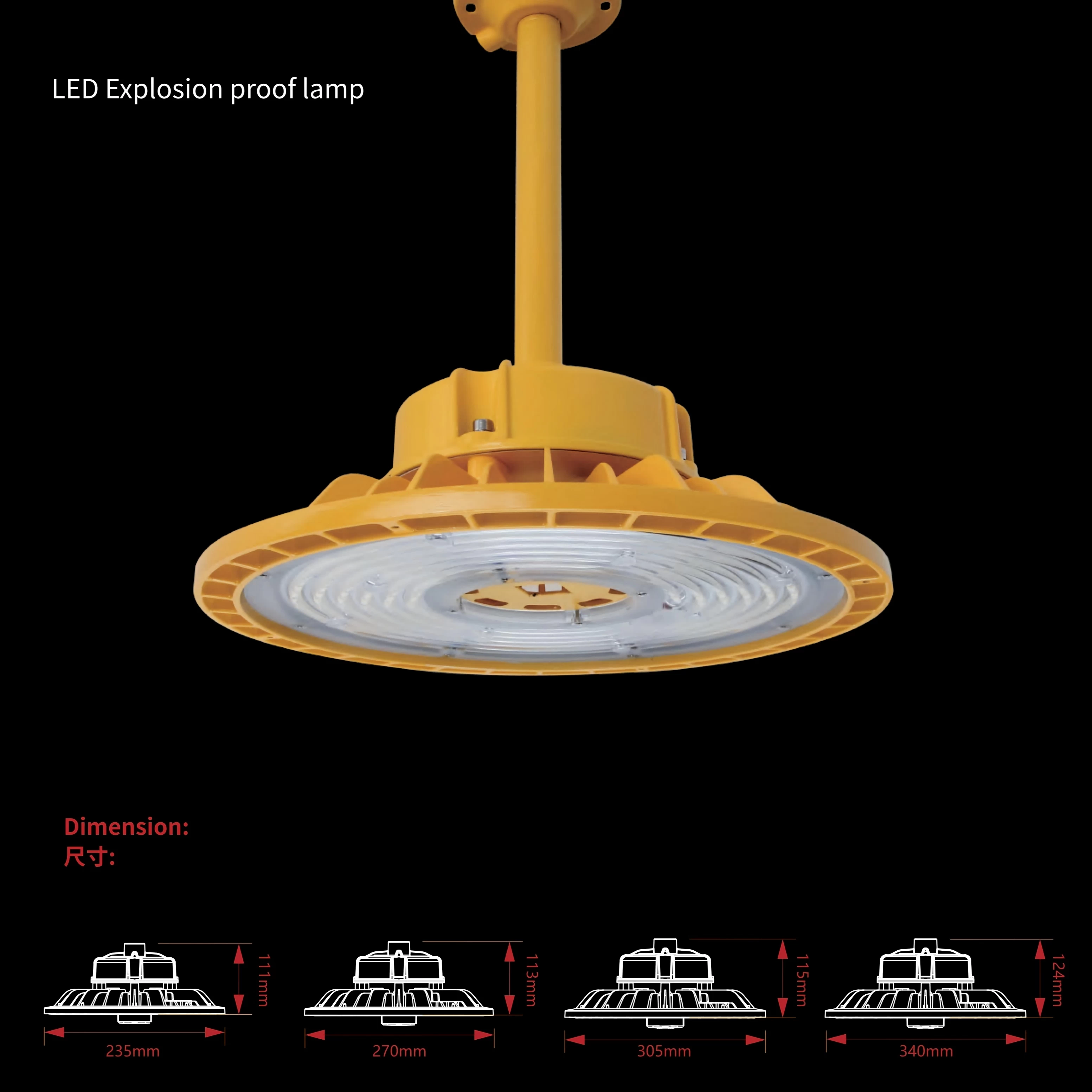

Overall Dimension	DS.050W: Ø235H111mm DS.100W: Ø270H113mm DS.150W: Ø305H115mm DS.200W/250W/300W: Ø340H124mm
Input Voltage	AC100-277V, 50/60Hz
Luminous Efficiency	140~200LM/W
Power Factor	PF ＞ 0.95
Color Rendering Index	Ra＞70 / Ra＞80 Optional
Color Temperature CCT	3000K / 4000K / 5000K / 6000K
Optional Beam Angle	60° Narrow / 90° Medium / 120° Wide
Dimming & Function	ON/OFF, 0-10V DIM, DALI DIM, Power & CCT Adjustable, Microwave Sensor (18m sensing, cold storage available)
Optional Accessories	Aluminum Diffuser, PC Diffuser, Microwave Motion Sensor, Remote Control
Housing Feature	Flameproof Yellow Anti-explosion Alloy Housing, Hollow Die-cast Aluminum Heat Sink
Installation Method	Chain Suspension Mounting
Rated Service Life	50,000 Hours

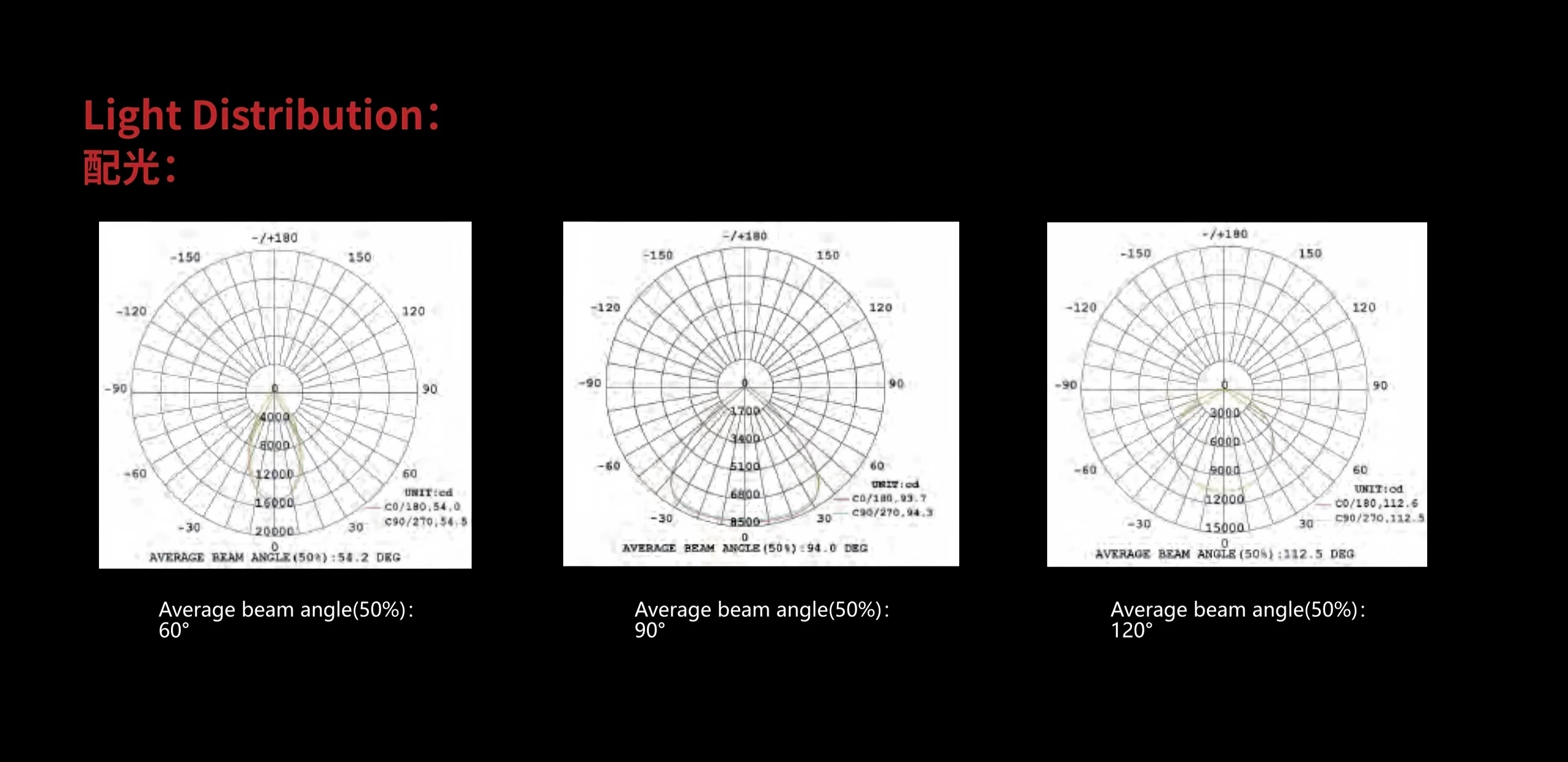

Light Distribution Explanation

60° narrow beam for high rack hazardous warehouse; 90° medium beam for standard chemical workshop; 120° wide beam for large open oil depot, uniform lighting without dark zones.

Core Product Advantages

1.Flameproof yellow explosion-proof housing, safe for flammable & explosive hazardous zones
2.Hollow aluminum heat sink, fast heat dissipation, 50,000h long service life
3.Optional microwave sensor & remote control, automatic energy saving
4.Multiple dimming & adjustable power/CCT, compatible with smart lighting systems
5.AC100-277V universal wide voltage, PF＞0.95, high efficiency & low power loss

Factory wholesale DS series yellow explosion proof UFO LED high bay light, customizable microwave sensor and dimming function for hazardous industrial zone lighting projects.
