U Series Square UFO LED High Bay Light 100W-250W Industrial Warehouse Lamp
- U series square UFO LED high bay light 100/150/200/250W, max 150LM/W, PF＞0.95, Ra70/Ra80. 3 beam angles & 4 CCT, support 0-10V/DALI dimming, power & CCT adjustable. AC90-305V ultra wide voltage, square directional light design, perfect for rack storage, factory, logistics park.
Generate QR code
-
When You'll Get It:Sep 07 - Sep 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Product Overview
Unique square UFO industrial high bay light with integrated fin aluminum housing. Ultra wide AC90-305V input voltage, directional light output to avoid light leakage, multiple dimming functions customizable for dense rack warehouse and industrial projects.

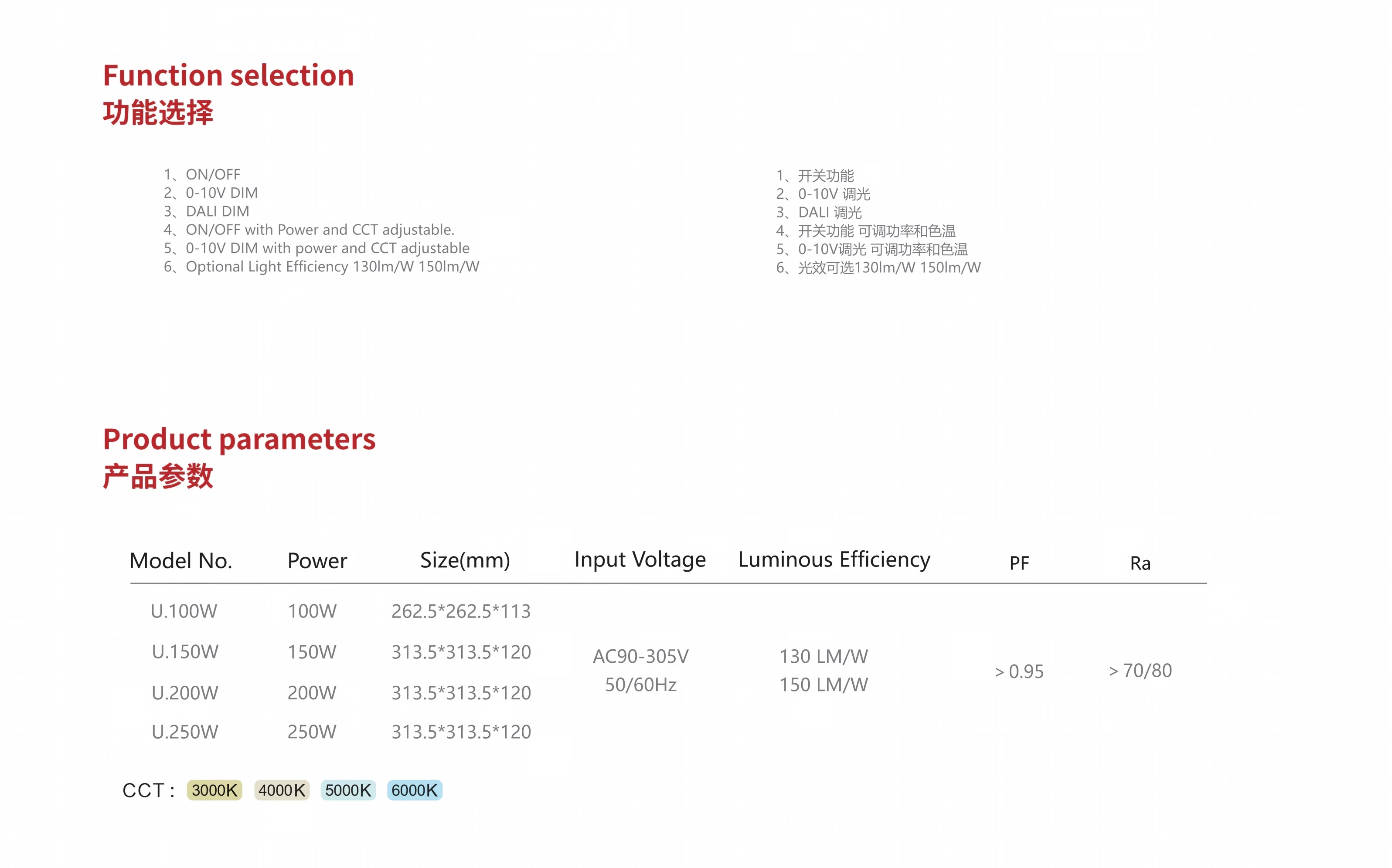

| Parameter Item | Specification |
|---|---|
| Model Number | U.100W / U.150W / U.200W / U.250W |
| Rated Power | 100W / 150W / 200W / 250W |

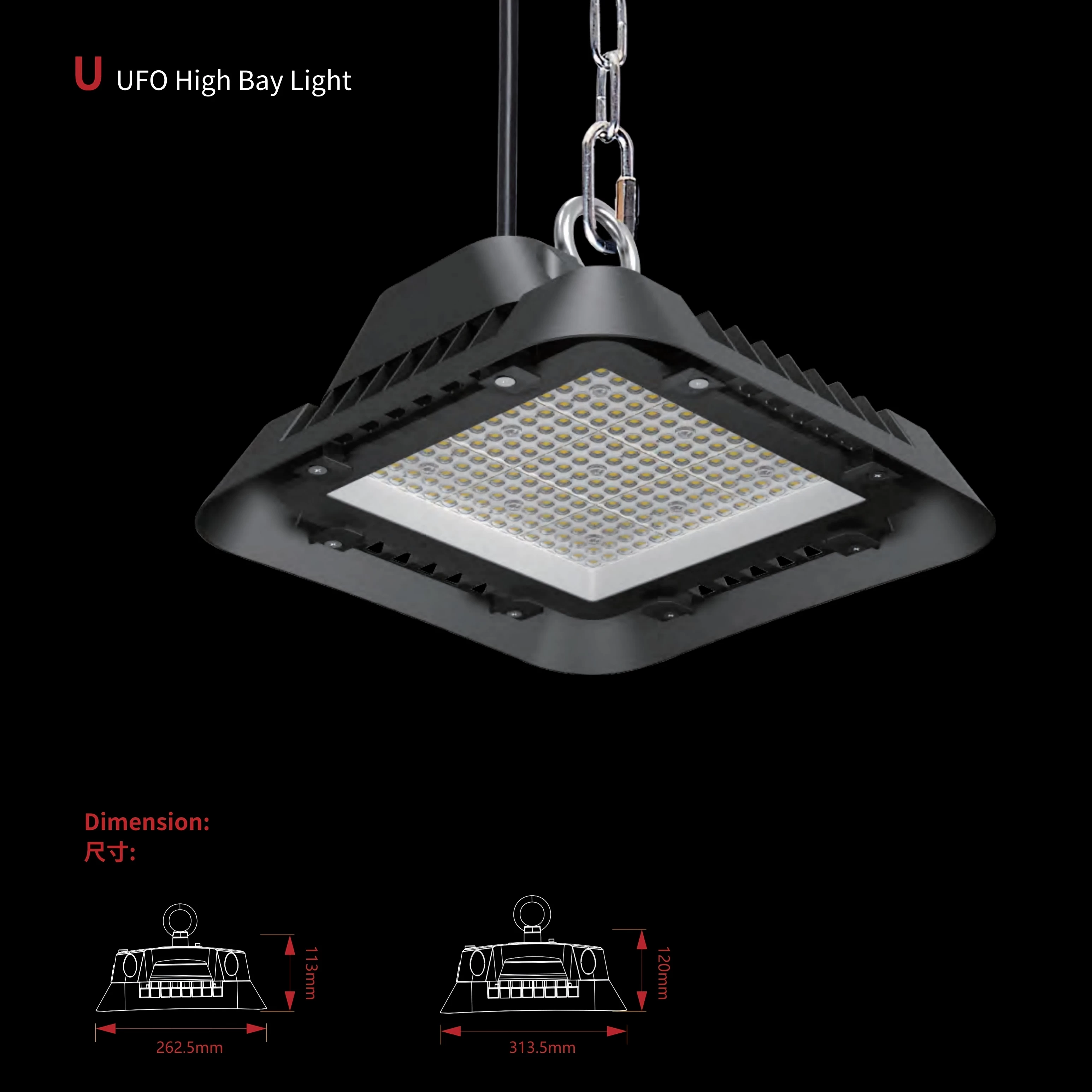

| Overall Dimension | U.100W：262.5262.5H113mmU.150W/200W/250W：313.5313.5H120mm |
| Input Voltage | AC90-305V, 50/60Hz |
| Luminous Efficiency | 130~150LM/W |
| Power Factor | PF ＞ 0.95 |
| Color Rendering Index | Ra＞70 / Ra＞80 Optional |
| Color Temperature CCT | 3000K / 4000K / 5000K / 6000K |
| Optional Beam Angle | 60° Narrow / 90° Medium / 120° Wide |
| Dimming Function | ON/OFF, 0-10V DIM, DALI DIM, Power & CCT Adjustable |
| Housing Material | Fin Integrated Die-cast Aluminum Alloy |
| Installation Method | Chain Suspension Mounting |
| Rated Service Life | 50,000 Hours |

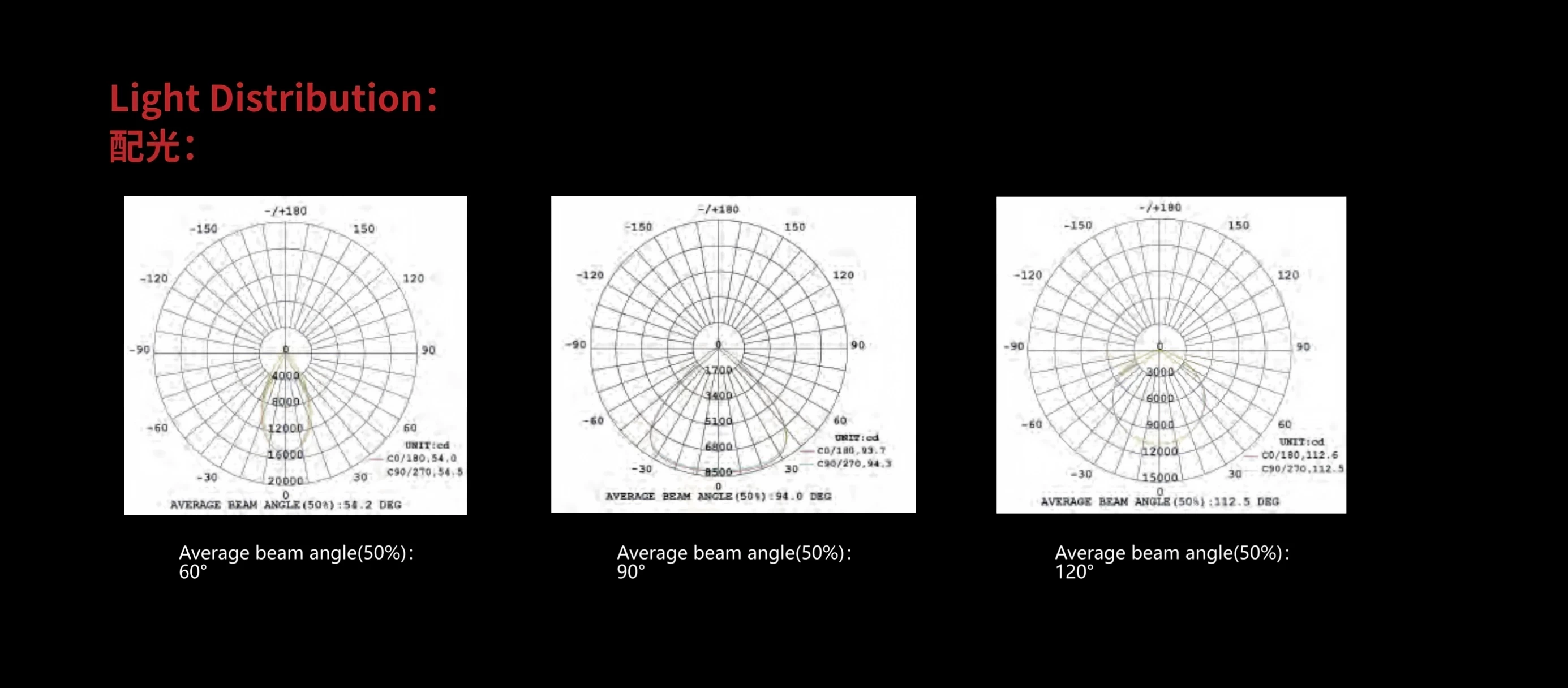

Light Distribution Explanation
60° narrow beam for high dense rack warehouse; 90° medium beam for regular factory workshop; 120° wide beam for large open space, directional light without side light leakage.
Our Advantages
1.High luminous efficiency up to 200LM/W, 70% energy saving vs traditional lamps
2.AC100-277V global wide voltage, flicker-free stable light
3.Die-cast aluminum heat sink, slow light decay, 50000h long service life
4.60°/90°/120° three beam angles optional, uniform lighting without dark zones
5.Multiple CCT options (3000K-6000K), PF＞0.9 high power facto
6.Support 0-10V / DALI dimming, intelligent energy control
Factory wholesale U series square UFO LED high bay light, ultra wide AC90-305V voltage, directional square lighting for rack warehouse industrial lighting projects.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
