N Series Slim LED Street Light 30W-240W Municipal Road Lighting Lamp
- N series slim LED street light 30W-240W, luminous efficiency 130~150LM/W, PF＞0.95, Ra＞70. 6 road light distributions & 4 CCT, support 0-10V/DALI/PLC control. Optional Zhaga/NEMA socket, photocell, SPD surge protector, circuit breaker. Tool-free maintenance, fit city roads, residential areas, parking lots.
Generate QR code
-
When You'll Get It:Sep 07 - Sep 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Product Overview
Slim integrated LED street light with die-cast aluminum housing, power range 30W to 240W. Super wide AC90-305V input, six professional road optical patterns and complete smart control accessories, global certifications for municipal engineering.

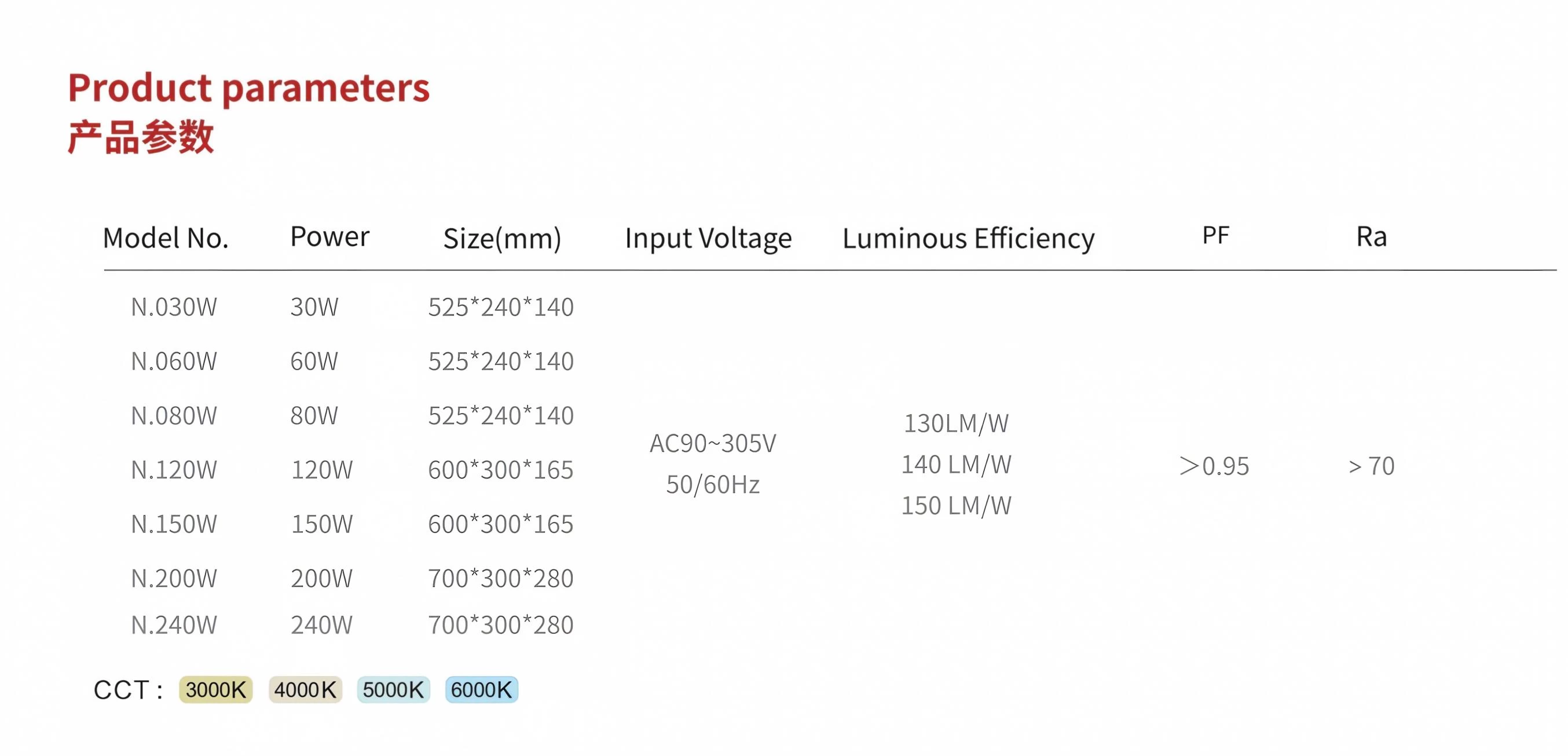

| Parameter Item | Specification |
|---|---|
| Model Number | N.030W / N.060W / N.080W / N.120W / N.150W / N.200W / N.240W |
| Rated Power | 30W / 60W / 80W / 120W / 150W / 200W / 240W |

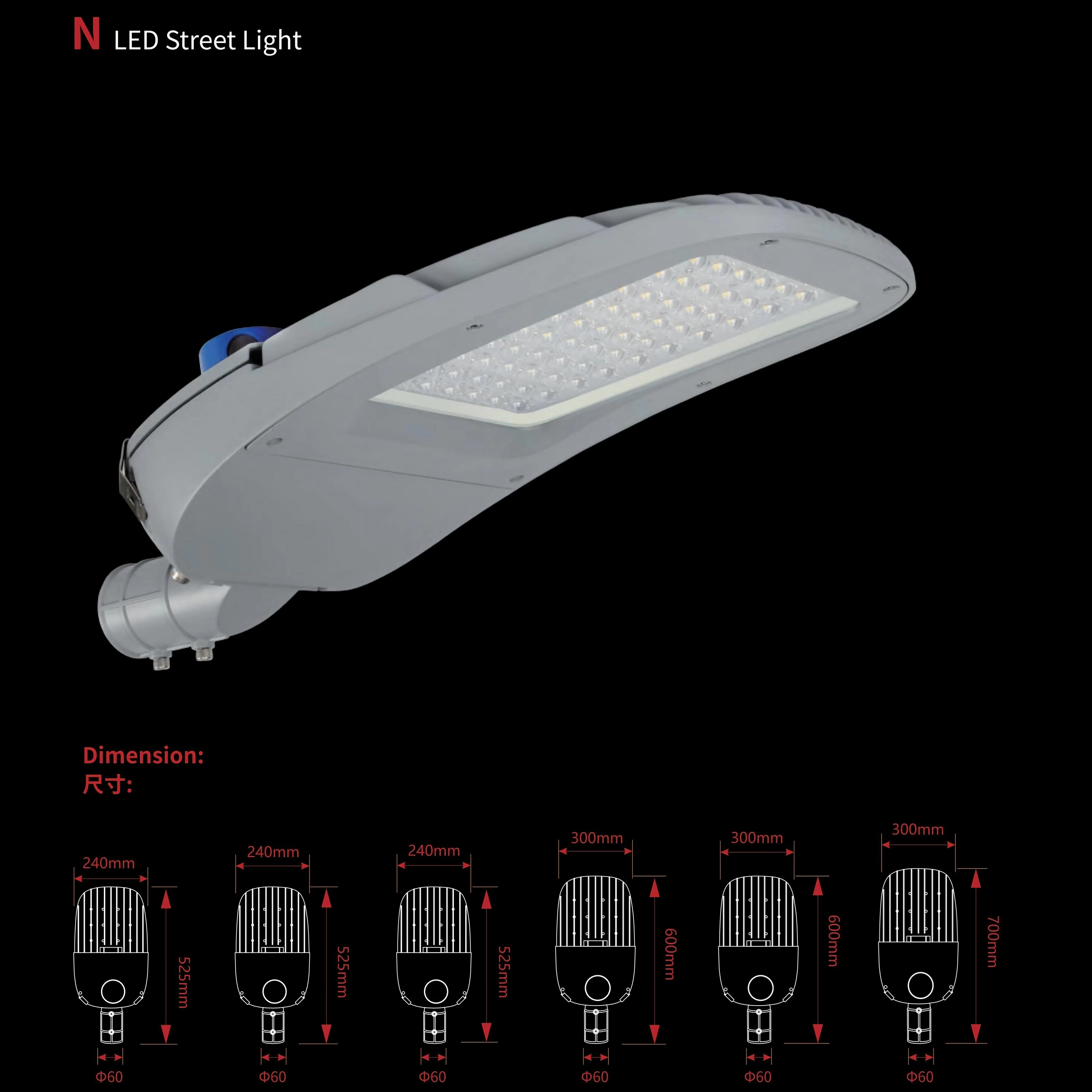

| Overall Dimension | N.030W/060W/080W: 525240140mmN.120W/150W: 600300165mmN.200W/240W: 700300280mm |
| Mounting Pipe Diameter | Φ60mm |
| Input Voltage | AC90-305V, 50/60Hz |
| Luminous Efficiency | 130~150LM/W |
| Power Factor | PF ＞ 0.95 |
| Color Rendering Index | Ra＞70 |
| Color Temperature CCT | 3000K / 4000K / 5000K / 6000K |
| Optional Light Distribution | Type I / Type II / Type III / Type I/II / Residential Road / Wide Road Distribution |
| Dimming & Control | ON/OFF, 0-10V DIM, DALI DIM, PLC Single/Dual/Centralized Control, Timer Function |
| Optional Accessories | 10KV/20KV SPD Surge Protector, Zhaga Socket/Cap/Photocell, NEMA 3/5/7 Wire Socket/Cap/Photocell, Circuit Breaker |
| Housing Material | Die-cast Aluminum Alloy |
| Maintenance Feature | Tool-free repair, power failure safety protection |
| Certifications | Global full certification support |
| Rated Lifespan | 50,000 Hours |
Light Distribution Explanation
Six professional optical designs adapt to residential lanes, urban main roads and parking lots, output uniform glare-free road lighting
Core Product Advantages
1.Die-cast aluminum split modular design, tool-free disassembly for easy on-site maintenance
2.High luminous efficiency up to 165LM/W, PF＞0.95, effectively cut municipal power consumption
3.Complete intelligent control options, compatible with Zhaga, NEMA, DALI and PLC systems
4.Six professional road light distributions, match highways, communities, parking lots and country roads
5.AC100-277V wide universal voltage, global full certifications, 50,000-hour long service life
Factory wholesale N series slim intelligent LED street light, ultra-wide AC90-305V, multiple optical options for municipal road engineering projects.
