L Series Mini Compact LED Street Light 40W-200W Municipal Road Lighting Lamp
- L series mini compact LED street light 40W-200W, luminous efficiency 130~150LM/W, PF＞0.95, Ra＞80. 6 road light distributions & 4 CCT, support 0-10V/DALI/PLC control. Optional Zhaga/NEMA socket, photocell, SPD surge protector. Tool-free maintenance for residential roads, sidewalks, parking lots.
Generate QR code
-
When You'll Get It:Sep 07 - Sep 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Product Overview
Mini compact die-cast aluminum LED street light, power range 40W to 200W. Ultra-small lightweight body, six professional road optical patterns and complete intelligent control accessories, global full certifications for municipal & residential road engineering.

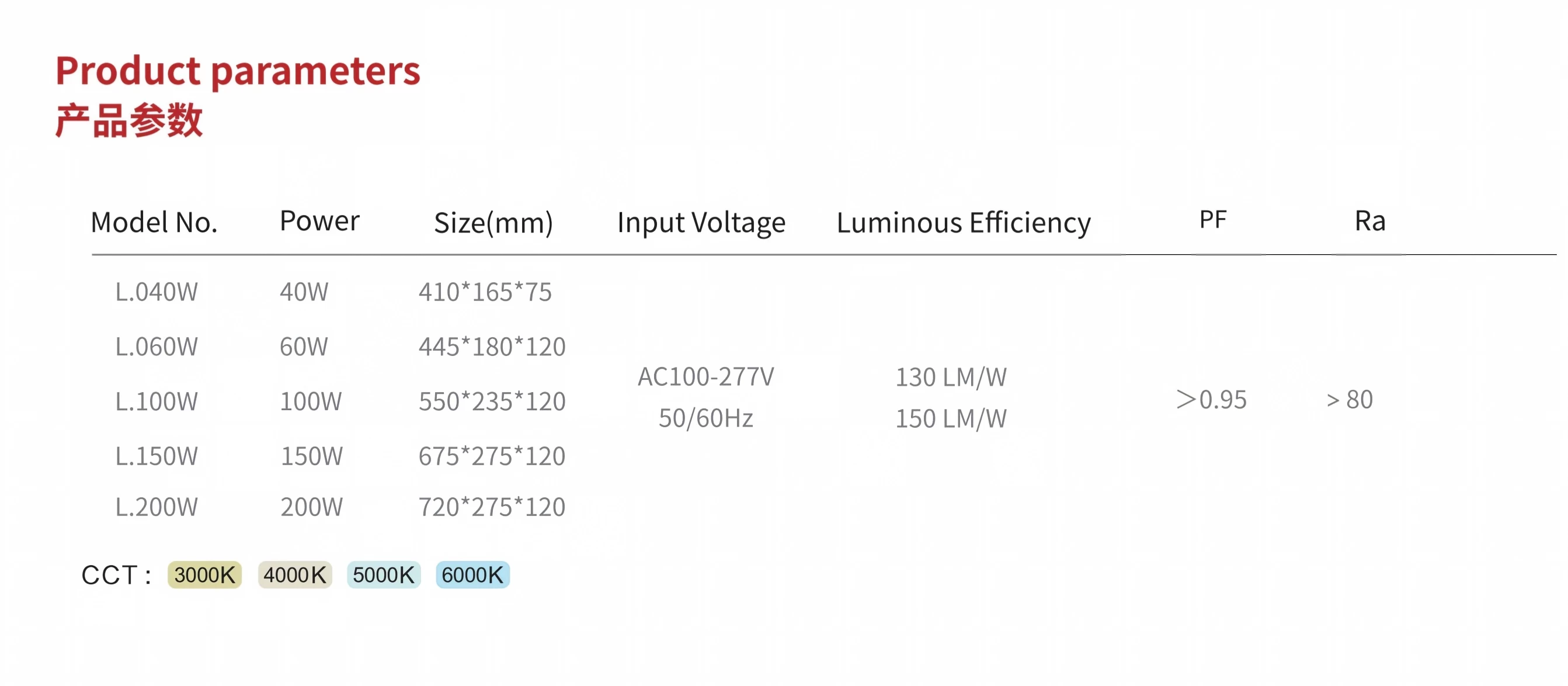

| Parameter Item | Specification |
|---|---|
| Model Number | L.040W / L.060W / L.100W / L.150W / L.200W |
| Rated Power | 40W / 60W / 100W / 150W / 200W |

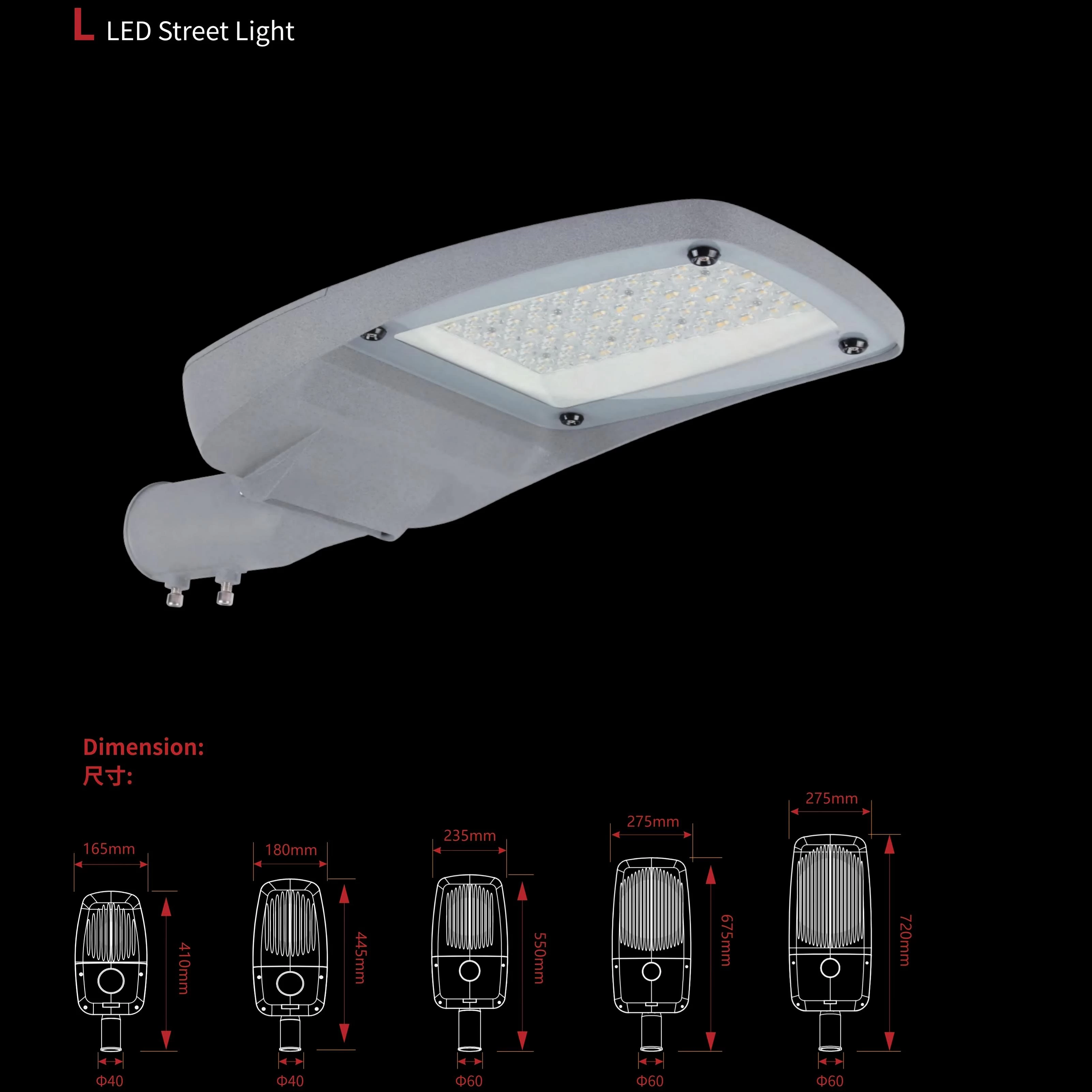

| Overall Dimension | L.040W:41016575mmL.060W:445180120mmL.100W:550235120mmL.150W:675275120mmL.200W:720275120mm |
| Mounting Pipe Diameter | Φ40mm / Φ60mm |
| Input Voltage | AC100-277V, 50/60Hz |
| Luminous Efficiency | 130~150LM/W |
| Power Factor | PF ＞ 0.95 |
| Color Rendering Index | Ra＞80 |
| Color Temperature CCT | 3000K / 4000K / 5000K / 6000K |
| Optional Light Distribution | Type I / Type II / Type III / Type I/II / Residential Road / Wide Road Distribution |
| Dimming & Control | ON/OFF, 0-10V DIM, DALI DIM, PLC Single/Dual/Centralized Control, Timer Function |
| Optional Accessories | 10KV/20KV SPD Surge Protector, Zhaga Socket/Cap/Photocell, NEMA 3/5/7 Wire Socket/Cap/Photocell, Circuit Breaker |
| Housing Material | Die-cast Aluminum Alloy |
| Maintenance Feature | Tool-free repair, power failure safety protection |
| Certifications | Global full certification support |
| Rated Lifespan | 50,000 Hours |

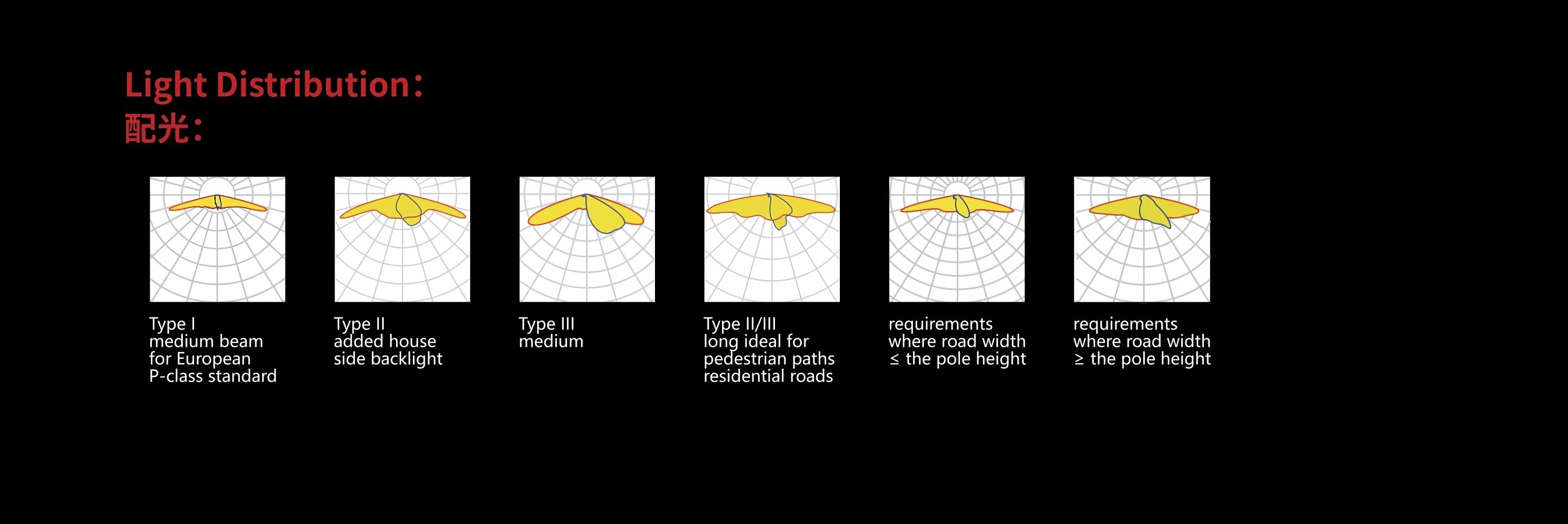

Light Distribution Explanation
Six dedicated optical designs fit narrow residential lanes, sidewalks and small parking lots, deliver uniform soft light without glare.
Core Product Advantages
1.Die-cast aluminum split modular design, tool-free disassembly for easy on-site maintenance
2.High luminous efficiency up to 165LM/W, PF＞0.95, effectively cut municipal power consumption
3.Complete intelligent control options, compatible with Zhaga, NEMA, DALI and PLC systems
4.Six professional road light distributions, match highways, communities, parking lots and country roads
5.AC100-277V wide universal voltage, global full certifications, 50,000-hour long service life
Factory wholesale L series mini compact LED street light, multiple optical types & smart control accessories for small municipal and residential road projects.
