R Series Modular LED Street Light 50W-300W Urban Road Lighting Lamp

  • R series modular LED street light 50W-300W, max 160LM/W, PF＞0.95, Ra70/Ra80. 6 types light distribution, 4 CCT, support DALI/0-10V dimming. Optional Zhaga/NEMA socket, photocell, PLC controller, SPD surge protection. Tool-free maintenance, IP66 for highway, residential road, parking lot.
Share

  • When You'll Get It:Sep 07 - Sep 11

  • Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return

Product Overview

Split modular LED street light with die-cast aluminum housing, full power range from 50W to 300W. Equipped with six professional road light distributions and abundant optional smart control accessories, fully certified globally, specially supplied for municipal road engineering projects.

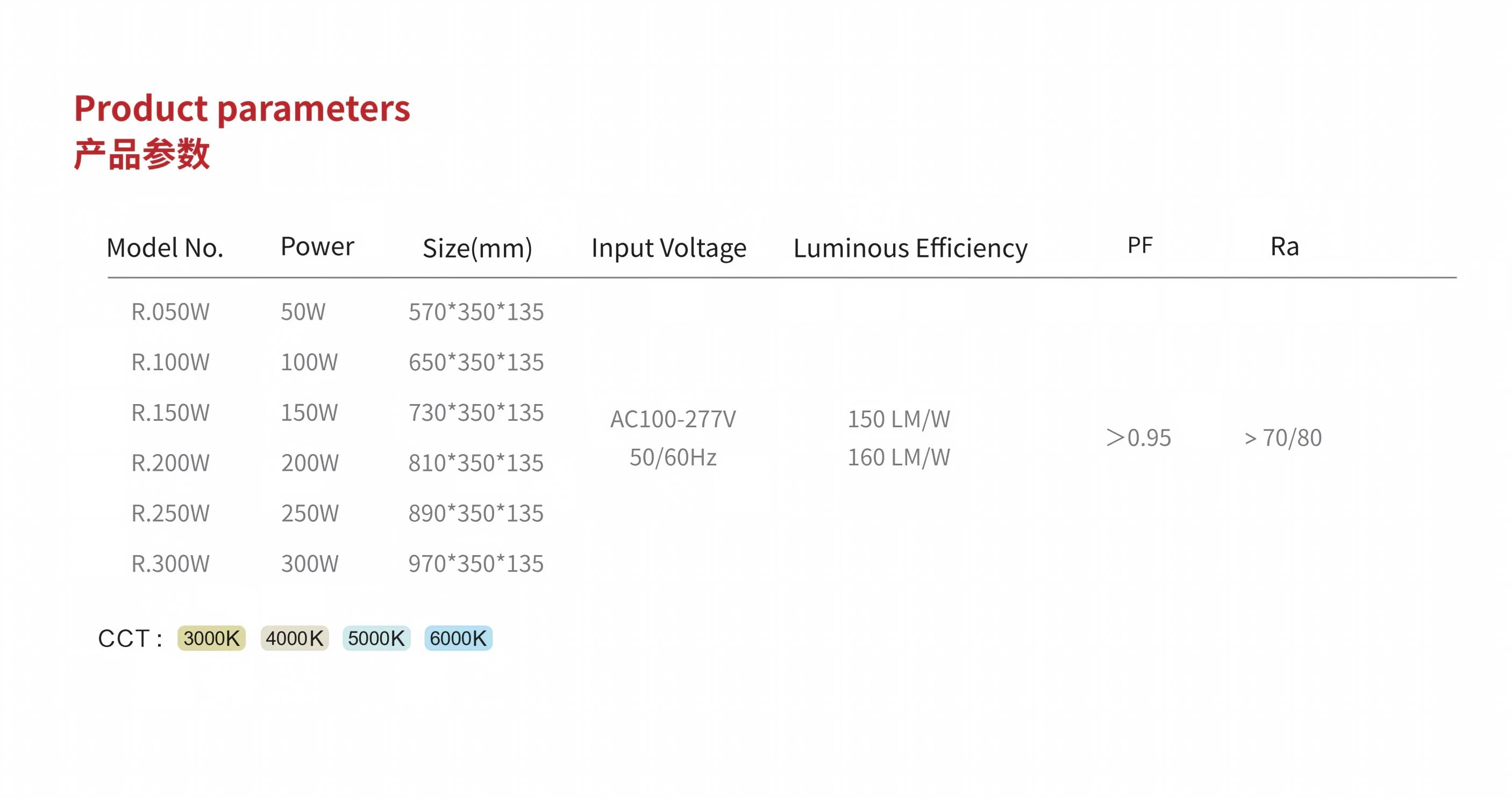

Parameter ItemSpecification
Model NumberR.050W / R.100W / R.150W / R.200W / R.250W / R.300W
Rated Power50W / 100W / 150W / 200W / 250W / 300W

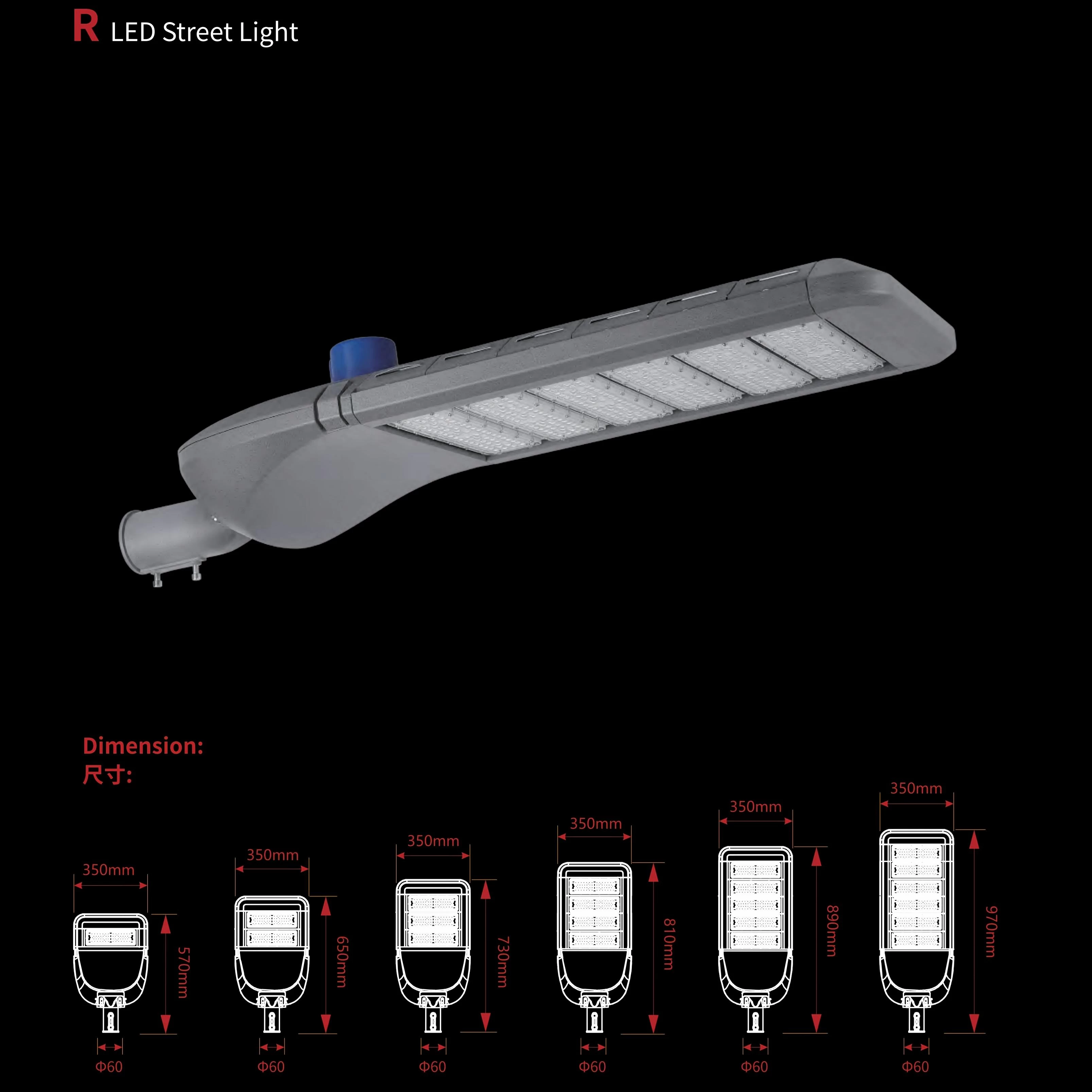

Overall DimensionR.050W:570350135mm
R.100W:650350135mm
R.150W:730350135mm
R.200W:810350135mm
R.250W:890350135mm
R.300W:970350135mm
Mounting Pipe DiameterΦ60mm
Input VoltageAC100-277V, 50/60Hz
Luminous Efficiency150~160LM/W
Power FactorPF ＞ 0.95
Color Rendering IndexRa＞70 / Ra＞80 Optional
Color Temperature CCT3000K / 4000K / 5000K / 6000K
Optional Light DistributionType I / Type II / Type III / Type I/II / Residential Road / Wide Road Distribution
Dimming & ControlON/OFF, 0-10V DIM, DALI DIM, PLC Single/Dual/Centralized Control, Timer Function
Optional AccessoriesSPD Surge Protector, Zhaga Socket/Cap/Photocell, NEMA 3/5/7 Wire Socket/Cap/Photocell, Circuit Breaker
Housing MaterialDie-cast Aluminum Alloy
Maintenance FeatureTool-free repair, power failure safety protection
CertificationsGlobal full certification support
Rated Lifespan50,000 Hours


Light Distribution Explanation
6 professional optical designs match different road scenes: medium beam, side backlight, long road & residential road distribution, uniform road illumination without glare.


Factory wholesale R series modular intelligent LED street light, multiple optical types & smart control accessories, for municipal road lighting engineering projects.


Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
