S Series Modular LED Street Light 50W-300W Municipal Road Lighting Lamp

  • S series split modular LED street light 50W-300W, 150-160LM/W, PF＞0.95, Ra70/Ra80. 6 professional light distributions & 4 CCT, support 0-10V/DALI/PLC control. Optional Zhaga/NEMA socket, photocell, SPD surge protection. Tool-free maintenance, for highway, residential road, parking lot.
Share

  • When You'll Get It:Sep 07 - Sep 11

  • Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return

Product Overview

Split modular LED street light with die-cast aluminum housing, full power range 50W to 300W. Equipped with six professional road optical designs, complete intelligent control accessories, global safety certifications for municipal road engineering projects.

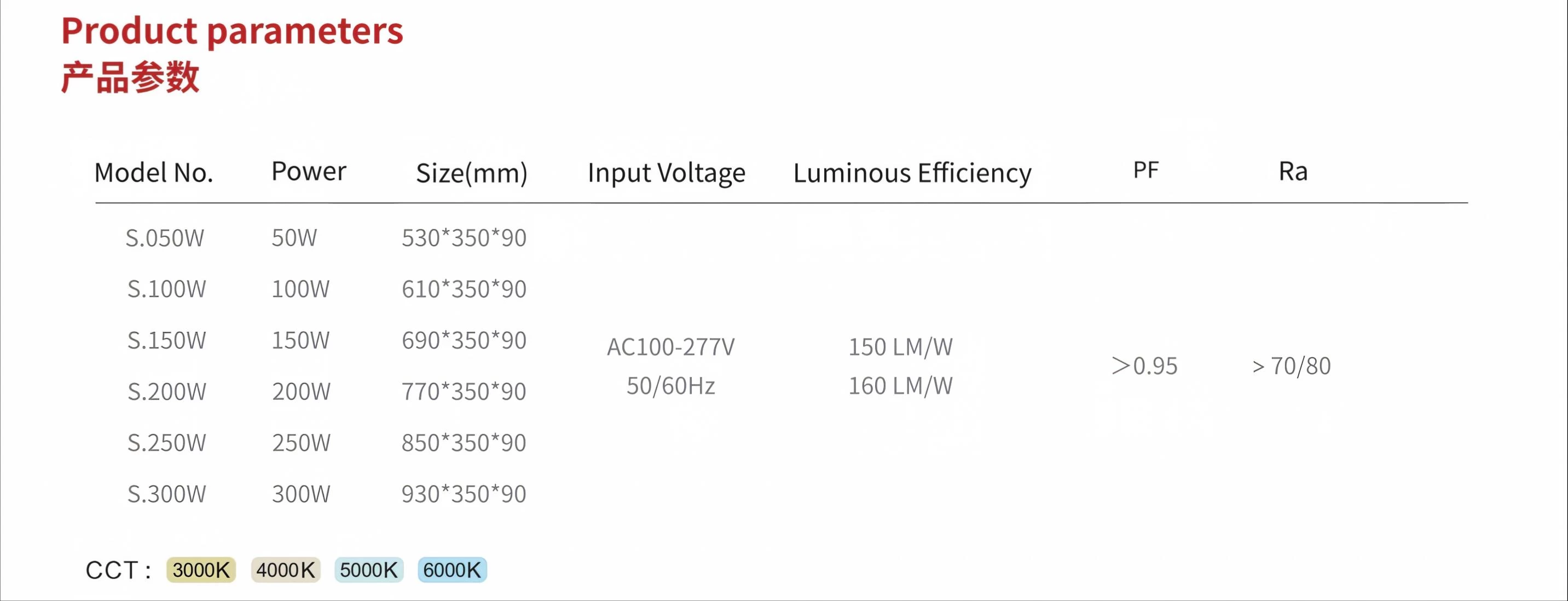

Parameter ItemSpecification
Model NumberS.050W / S.100W / S.150W / S.200W / S.250W / S.300W
Rated Power50W / 100W / 150W / 200W / 250W / 300W

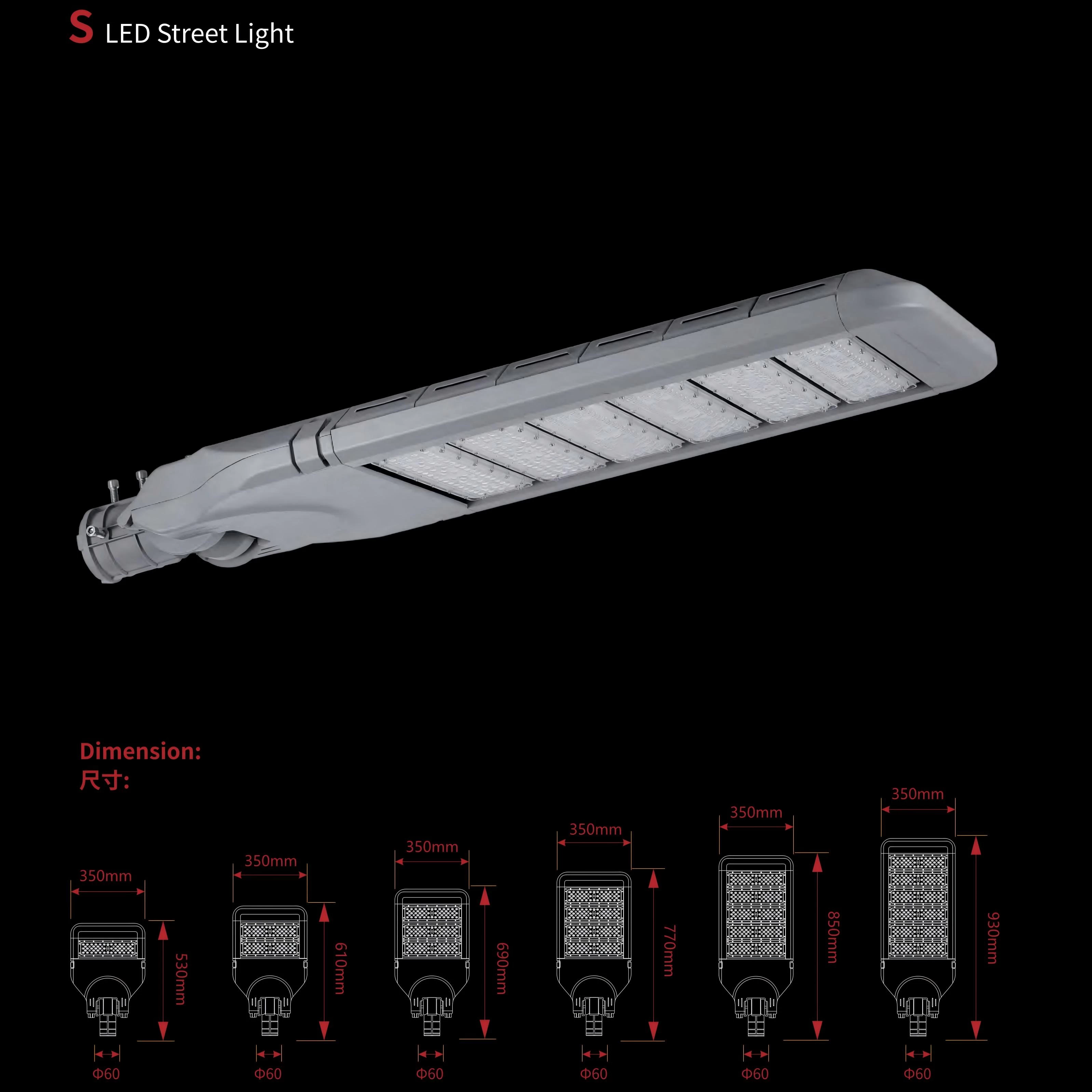

Overall DimensionS.050W:53035090mm
S.100W:61035090mm
S.150W:69035090mm
S.200W:77035090mm
S.250W:85035090mm
S.300W:93035090mm
Mounting Pipe DiameterΦ60mm
Input VoltageAC100-277V, 50/60Hz
Luminous Efficiency150~160LM/W
Power FactorPF ＞ 0.95
Color Rendering IndexRa＞70 / Ra＞80 Optional
Color Temperature CCT3000K / 4000K / 5000K / 6000K
Optional Light DistributionType I / Type II / Type III / Type I/II / Residential Road / Wide Road Distribution
Dimming & ControlON/OFF, 0-10V DIM, DALI DIM, PLC Single/Dual/Centralized Control, Timer Function
Optional Accessories10KV/20KV SPD Surge Protector, Zhaga Socket/Cap/Photocell, NEMA 3/5/7 Wire Socket/Cap/Photocell, Circuit Breaker
Housing MaterialDie-cast Aluminum Alloy
Maintenance FeatureTool-free repair, power failure safety protection
CertificationsGlobal full certification support
Rated Lifespan50,000 Hours


Core Product Advantages
1.Split modular die-cast aluminum structure, tool-free quick disassembly for on-site maintenanc
2.High luminous efficiency up to 160LM/W & PF＞0.95, cut municipal electricity cost
3.Complete smart control solutions: DALI, PLC, Zhaga & NEMA standard compatible
4.6 dedicated road light distributions, match highway, community roads & parking lots
5.AC100-277V universal wide voltage, full global certifications, 50000h long lifespan

Factory wholesale S series modular smart LED street light, multiple optical types & smart control accessories, for municipal road lighting engineering projects.

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
